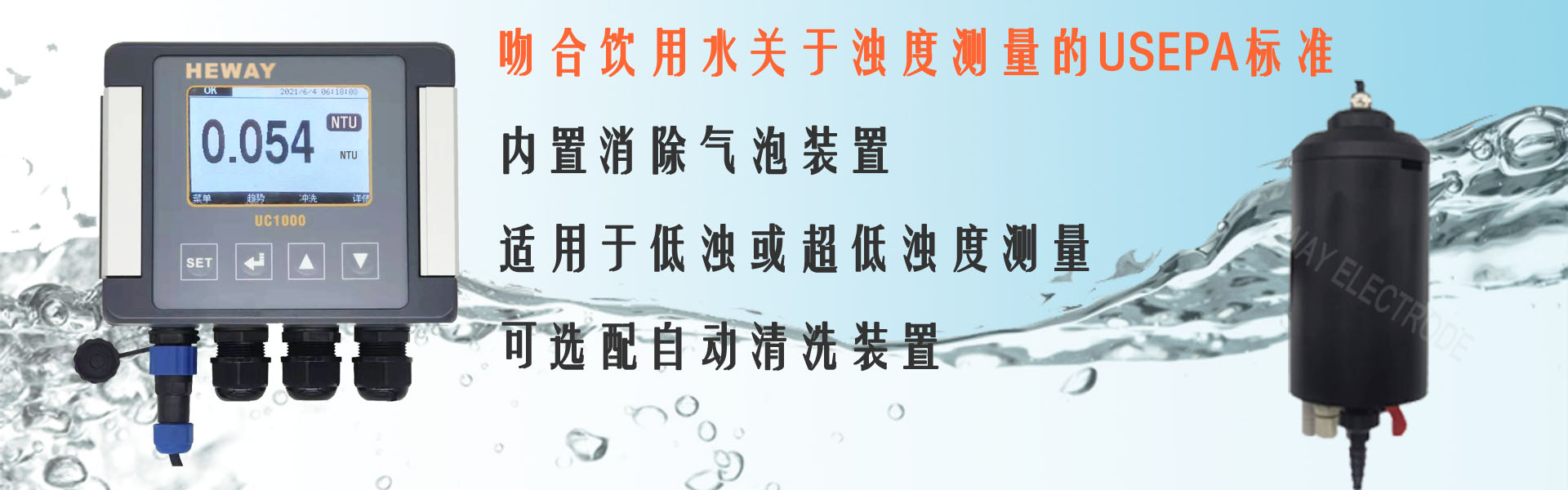

Low turbidity analyzer UC1000/TU80D
product details
Measurement principle
The TU80D turbidity sensor adopts a 90° scattered light measurement method and is equipped with an internal bubble elimination device to eliminate the most significant interference in low turbidity measurements. The sensor is built with an EPA solid-state continuous white light source, and the light emitted downward encounters suspended particles in the sample, generating scattered light. The photodetector immersed in the water sample by the sensor can detect the light at a 90° Angle to the incident beam and calculate its signal intensity, thereby obtaining the concentration value of the sample.
Typical applications
Aquaculture
Underground water
Environmental monitoring
Water treatment
UC1000-DST CONTROLLER main Technical Parameter
Language selection: English, Simplified Chinese
output: 2-channel isolated 0/4~20mA, 500Ω Max
communication: MODBUS RS485 protocol
Data recording: Built-in storage function
Relay control: 2-channel switch 250VAC 5A Max
Protection grade: IP66
Power supply: 100-240VAC, 50/60Hz, 24VDC, optional
TU80D Electrode technical parameters
Measurement range: 0-100NTU
Temperature range: 0 to 40℃
Measurement accuracy: ±2% or ±0.01NTU of the reading when 0.0001-10NTU, whichever is greater. 10-100NTU represents ±5% of the reading
Main material: POM
Cleaning device: Optional
Cable length: Standard 5m, other options available
Installation method: Flow type
Temperature range: 0 to 40℃
Measurement accuracy: ±2% or ±0.01NTU of the reading when 0.0001-10NTU, whichever is greater. 10-100NTU represents ±5% of the reading
Main material: POM
Cleaning device: Optional
Cable length: Standard 5m, other options available
Installation method: Flow type
